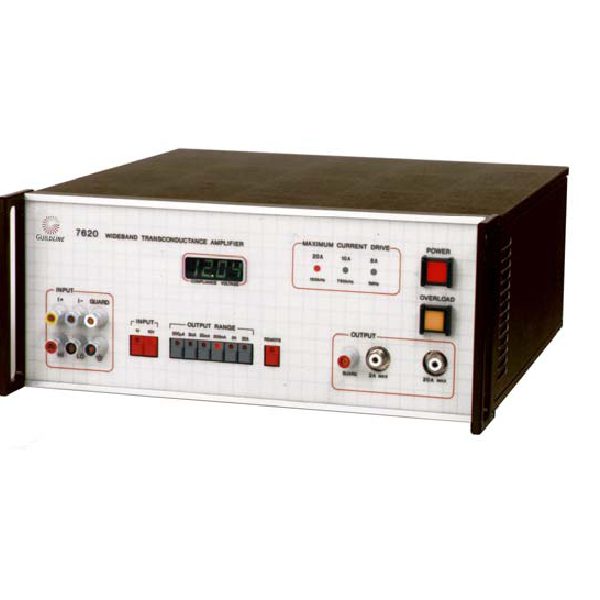

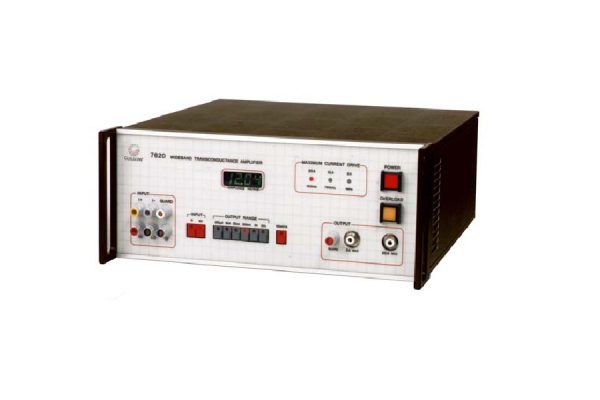

7620 WIDE-BAND TRANSCONDUCTANCE AMPLIFIER
0
PRODUCT FEATURES
- Stability <10 ppm/hour @ 30 kHz
- Ranges, (6) 200 µA to 20A
- Frequency DC to 1 MHz
- Compliance to 10 Volts
- Guarded Output
- IEEE-488 Interface
- Over Voltage and Over Current Protection
- Guildline’s 7620 Transconductance Amplifier is a very wide band Transconductance Amplifier. By connecting the output from a stable voltage source to the 7620, it is capable of producing outputs up to 20 A over a specified frequency range of DC to 100 kHz.
.
