Temperature Metrology
3210T Thermometry Auto-Switch with Pre-Heat
PRODUCT FEATURES
- Connect up to 8 PRT’s/SPRT’s at One Time
- Supports Non-SPRT Probes or Devices With Currents Other Than 1 mA
- Programmable Pre-Heat Currents From 20 µA to 150 mA
- Pre-Heat Available and Set-able on an Individual Channel Basis
- Ideal for Use with Fixed Points and Comparison Furnaces
- 5 Way Front Panel Connectors Allow Easy For Banana Connectors and Spade Lugs
- Multiple Interfaces Can be Integrated
- Front Panel Operator Connection with Touch Screen Control
5030 SERIES HIGH PRECISION VARIABLE TEMPERATURE AIR BATHS
- Excellent Temperature Stability, Better Than 0.015 °C over 24 Hours!
- Cooling Capacity up to 6 °C Below Ambient!
- Temperature Range 15 °C to 50 °C!
- Dual Fan – Forced Air Circulation Ensures Uniform Temperature!
- Large Volume Enclosure – Over 82 Liters!
- Enclosure is Fully EMI Shielded!
- Convenient Front Access Door. Side Access Hole for Cables and Probes!
- Perfect for Checking Temperature Coefficients of Precision Air Resistors!
- 5032 Fully Programmable Via the IEEE-488.2 or RS 232 Standard Interfaces!
5600 SERIES HIGH PRECISION FLUID/OIL BATHS
PRODUCT FEATURES
- NEW Guildline Design and Metrology Based Features!
- Full Automation Via Windows 10 Laptop Computer (USB, IEEE)!
- Excellent Temperature Stability Low As:
±0.0015 K with Oil!
±0.001 K with Water! - Fluid Temperature Range -5 °C to 55 °C!
- Designed for use with Oil, Salt Water, Water, and other Fluids!
- Customer Choice of 4 Tank Sizes: 50 L, 75 L, 100 L and Now – NEW 300 L Model!
- Fiberglass Tank with Proprietary EMI Shielding!
- Convenient Access with Removable Tank Cover!
- Excellent Control via a PRT Sensor!
- 2nd Probe Included to Report Actual Temperature Anywhere in the Bath!
- Automatic and Programmable Over and Under Temperature Protection!
6622T TEMPERATURE BRIDGE
PRODUCT FEATURES
- Accuracy to 0.025 mK (i.e. best uncertainty at 0.1 ppm)
- Extended Performance (XP) Model Provides Best Accuracy at 0.013 mK (i.e. best uncertainty at 0.05 ppm)
- Wide Range From 0.1 Ω ~ 100 kΩ, Supporting a Wide Variety of SPRT’s, PRT’s, and RTD’s
- Resolution: ± 0.1 ppb of Full Scale and Linearity: ± 0.01 ppm of Full Scale
- Built in Temperature Conversion for ITS-90 and IPTS-68
- Graphical and Statistical Display
- Wide Range of Ratios: 0.1:1 ~ 100:1
- Fully Programmable IEEE 488.2 with BridgeWorks™ Data Acquisition Software
6634A SERIES TEMPERATURE STABILIZED RESISTANCE STANDARDS
- Normal Ohms Resistance Range: 0.1 Ω to 100 MΩ in Single Decade Increments
- NEW LOW Ohms Resistance Range provides 1 mΩ to 0.1 Ω in Decade Steps
- Temperature Coefficient < ± 0.005 ppm/°C
- Stabilities Low as < 2 ppm/year
- Thermometry Resistance Values Available
- 4-Wire Low Thermal Gold-Plated Connections
- Eliminates Oil Bath Requirements
- Internal PRT Stability: ±0.05 °C / Year
- Custom Internal Temperature Set Points
- Ambient Temperature Range: 23 °C ± 5 °C
- Low Thermal EMF’s – Shielded Chamber
- Guarded Resistance Element Chamber
- Custom Values / Models Available
- CE Marked with World-Wide Voltage & Frequencies
- Top End Range Values up to 100 TΩ with Guildline Model 6636
6640T SERIES OF AUTOMATIC MEASUREMENT SYSTEM TEMPERATURE BRIDGES
PRODUCT FEATURES
- Best Accuracy: ± 0.015 ppm with 1 mA of Current
- Linearity: < ± 0.01 ppm of Full Scale
- Patented Toroid Design Specifically for Temperature Measurement Applications
- Measurement Rates Fast as 2 Seconds
- First Measurement in < 10 Seconds
- Built-in Windows 10 Computer and Touch Screen Display Providing Complete Measurement Results and Graphs
- System Control via USB, Network, or IEEE
- Widest Available Resistance Range up to 100 kΩ
- Full Pre-Heat and Individual Channel and Current Control with Model 3210
- Modular Design, Expandable Capabilities
- Full 10.5 Digits (0.1 ppb) Display Resolution
- Change All Key Parameters “On-the-Fly” While the Measurement is Running
- Wide Range of Ratios: 0.1:1 ~ 13.4:1
- Available USB Ports for Data Collection and/or Ancillary Items Such as Hard Drives, Mouse, Keyboard, etc
- BridgeWorksTM Data Acquisition Software
- Unique Calibration Support Strategy
- Complete Measurement Systems Available!
Air Baths
PRODUCT FEATURES
Air Baths: (+ 15 °C to + 50 °C)
Refined solution for ultra-stable temperature environment 24/7, 365:
• Convenient Front Access – Side Access for Cables & Probes
• Dry, clean, stable, silent, storage for standard resistors
• Keeping the temperature within 10mK over months
• Perfect for checking temperature coefficients
• Peltier driven technology
• Cascade PID control
Calibration Bath – Black Body Cavity Ready
PRODUCT FEATURES
Black Body Cavity Ready Calibration Bath: (- 20 °C to + 250 °C)
• Perfect solution for calibrating IR thermometers and other thermographic equipment
• Various shapes Black Body Cavities available
• Temperature stability (°C): ± 0.006 @ – 20 °C, ± 0.003 @ 100 °C
• Temperature uniformity (°C): ± 0.007 @ -20 °C, ± 0.007 @ 100 °C
• Fluid ensures perfect heat transfer
• Unique vertical flow design
• Metrology performance
• Two temperature ranges available
• State of the art solution
Calibration Bath – High Temperature
PRODUCT FEATURES
High temperature calibration baths: (+ 40 °C to + 250 °C)
• Temperature stability (°C): ± 0.006 @ 250 °C
• Temperature uniformity (°C): < ± 0.007 @ 100 °C
• Fluid ensures perfect heat transfer
• Up to 500 mm immersion depth
• Unique vertical flow design
• State of the art solution
• Three bath sizes
Calibration Bath – Low Temperature
PRODUCT FEATURES
Low temperature calibration baths: (- 40 °C to + 130 °C)
• Temperature stability (°C): ± 0.004 @ – 40 °C
• Temperature uniformity (°C): < ± 0.007 @ – 40 °C
• Calibrate sensors of any dimension
• Fluid ensures perfect heat transfer
• Up to 500 mm immersion depth
• Unique vertical flow design
• State of the art solution
• Three bath sizes
Calibration Bath – Ultra Low Temperature
PRODUCT FEATURES
Ultra Low temperature calibration baths: (- 90 °C to + 130 °C)
• Temperature stability (°C): ± 0.003 @ – 90 °C
• Temperature uniformity (°C): ± 0.007 @ – 90 °C
• Calibrate sensors of any dimension
• Fluid ensures perfect heat transfer
• Unique vertical flow design
• 500 mm immersion depth
• State of the art solution
• Two bath sizes

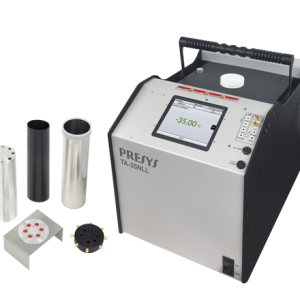

Calibration Bath Stirred Liquid or Dry Block – Extra Large Calibration Volume TA-35NLL
PRODUCT FEATURES
• 2 in 1: Stirred liquid and dry block.
• Temperature range: from -35 °C to 140 °C (TA-35NLL).
• Extra large calibration volume de 59 x 200 mm.
• Temperature measurement and control by external probe.
• External reference thermometer input with CVD or ITS-90 parameters.
• Input for RTD, thermocouples, thermoswitches or transmitters.
• Automatic calibrations and full documenting capabilities.
• Support of various data formats such as PDF, CSV, XML.
• Autocalibration of internal temperature reference with external reference.
