ENVIRONMENTAL CONTROL

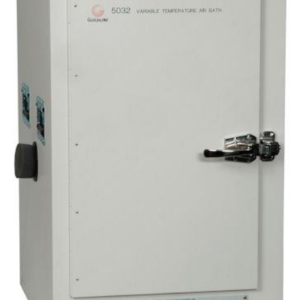

5030 SERIES HIGH PRECISION VARIABLE TEMPERATURE AIR BATHS
- Excellent Temperature Stability, Better Than 0.015 °C over 24 Hours!
- Cooling Capacity up to 6 °C Below Ambient!
- Temperature Range 15 °C to 50 °C!
- Dual Fan – Forced Air Circulation Ensures Uniform Temperature!
- Large Volume Enclosure – Over 82 Liters!
- Enclosure is Fully EMI Shielded!
- Convenient Front Access Door. Side Access Hole for Cables and Probes!
- Perfect for Checking Temperature Coefficients of Precision Air Resistors!
- 5032 Fully Programmable Via the IEEE-488.2 or RS 232 Standard Interfaces!

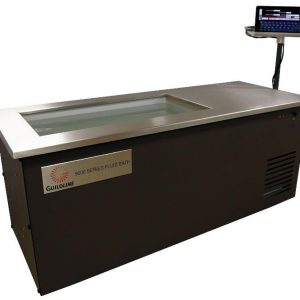

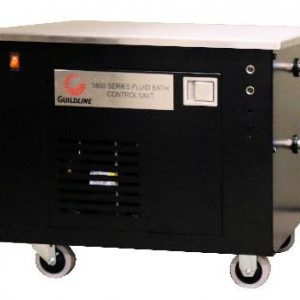

5600 SERIES HIGH PRECISION FLUID/OIL BATHS
PRODUCT FEATURES
- NEW Guildline Design and Metrology Based Features!
- Full Automation Via Windows 10 Laptop Computer (USB, IEEE)!
- Excellent Temperature Stability Low As:
±0.0015 K with Oil!
±0.001 K with Water! - Fluid Temperature Range -5 °C to 55 °C!
- Designed for use with Oil, Salt Water, Water, and other Fluids!
- Customer Choice of 4 Tank Sizes: 50 L, 75 L, 100 L and Now – NEW 300 L Model!
- Fiberglass Tank with Proprietary EMI Shielding!
- Convenient Access with Removable Tank Cover!
- Excellent Control via a PRT Sensor!
- 2nd Probe Included to Report Actual Temperature Anywhere in the Bath!
- Automatic and Programmable Over and Under Temperature Protection!

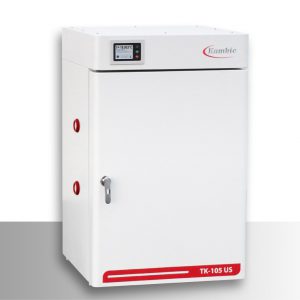

Air Baths
PRODUCT FEATURES
Air Baths: (+ 15 °C to + 50 °C)
Refined solution for ultra-stable temperature environment 24/7, 365:
• Convenient Front Access – Side Access for Cables & Probes
• Dry, clean, stable, silent, storage for standard resistors
• Keeping the temperature within 10mK over months
• Perfect for checking temperature coefficients
• Peltier driven technology
• Cascade PID control

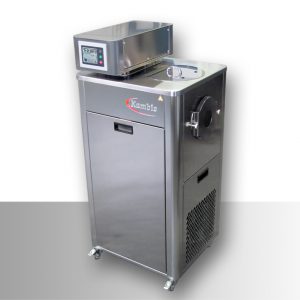

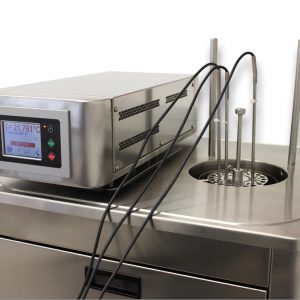

Calibration Bath – Black Body Cavity Ready
PRODUCT FEATURES
Black Body Cavity Ready Calibration Bath: (- 20 °C to + 250 °C)
• Perfect solution for calibrating IR thermometers and other thermographic equipment
• Various shapes Black Body Cavities available
• Temperature stability (°C): ± 0.006 @ – 20 °C, ± 0.003 @ 100 °C
• Temperature uniformity (°C): ± 0.007 @ -20 °C, ± 0.007 @ 100 °C
• Fluid ensures perfect heat transfer
• Unique vertical flow design
• Metrology performance
• Two temperature ranges available
• State of the art solution

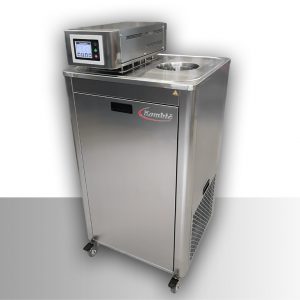

Calibration Bath – High Temperature
PRODUCT FEATURES
High temperature calibration baths: (+ 40 °C to + 250 °C)
• Temperature stability (°C): ± 0.006 @ 250 °C
• Temperature uniformity (°C): < ± 0.007 @ 100 °C
• Fluid ensures perfect heat transfer
• Up to 500 mm immersion depth
• Unique vertical flow design
• State of the art solution
• Three bath sizes
Calibration Bath – Low Temperature
PRODUCT FEATURES
Low temperature calibration baths: (- 40 °C to + 130 °C)
• Temperature stability (°C): ± 0.004 @ – 40 °C
• Temperature uniformity (°C): < ± 0.007 @ – 40 °C
• Calibrate sensors of any dimension
• Fluid ensures perfect heat transfer
• Up to 500 mm immersion depth
• Unique vertical flow design
• State of the art solution
• Three bath sizes

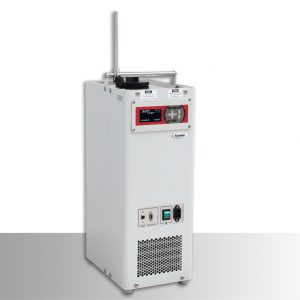

Calibration Bath – Ultra Low Temperature
PRODUCT FEATURES
Ultra Low temperature calibration baths: (- 90 °C to + 130 °C)
• Temperature stability (°C): ± 0.003 @ – 90 °C
• Temperature uniformity (°C): ± 0.007 @ – 90 °C
• Calibrate sensors of any dimension
• Fluid ensures perfect heat transfer
• Unique vertical flow design
• 500 mm immersion depth
• State of the art solution
• Two bath sizes

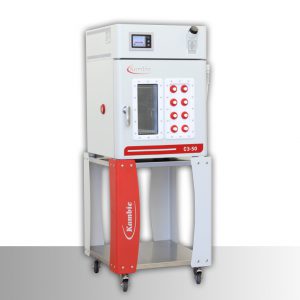

Calibration Climatic Chamber
PRODUCT FEATURES
Calibration climatic chamber – metrology performance:
• Perfect for calibration of air temperature and relative humidity sensors
• Superior temperature & humidity control and uniformity
• Convenient Front Access – Side Access for Cables & Probes
• Stable, silent, vibration free climatic conditions
• Data loggers and sensors calibration
• World-class metrology performance
• Mixed flow humidity control
• Cascade PID control
Climatic Chamber – Low Temperature
PRODUCT FEATURES
• Temperature and relative humidity controlled test polygon
• Material temperature & Rh resistance and product testing
• Maintaining superior temperature & Rh stability
• Sample conditioning prior to other tests
• Data loggers and sensors calibration
• World class metrology performance
• Accelerated ageing
• Stress tests

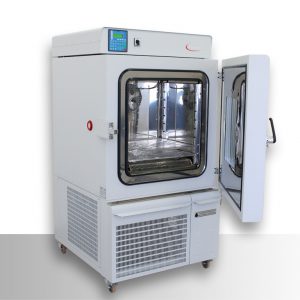

Climatic Chamber – Standard
PRODUCT FEATURES
• Temperature and relative humidity controlled test polygon
• Material temperature & Rh resistance and product testing
• Maintaining superior temperature & Rh stability
• Sample conditioning prior to other tests
• Data loggers and sensors calibration
• World class metrology performance
• Accelerated ageing
• Stress tests

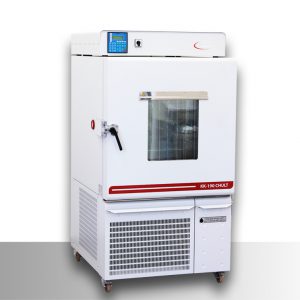

Climatic Chamber – Ultra Low Temperature
PRODUCT FEATURES
• Temperature and relative humidity controlled test polygon
• Material temperature & Rh resistance and product testing
• Maintaining superior temperature & Rh stability
• Sample conditioning prior to other tests
• Data loggers and sensors calibration
• World class metrology performance
• Accelerated ageing
• Stress tests

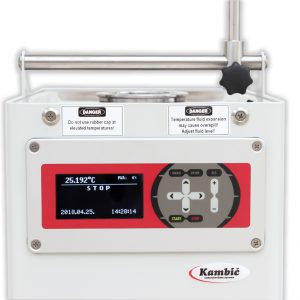

Micro Calibration Baths
PRODUCT FEATURES
Smallest portable calibration baths – metrology performance:
• Conventional compressor based refrigeration system
• Temperature range (°C): OBM (+ 35 °C… + 220 °C), OBM-LT (- 40 °C… + 130 °C)
• Temperature stability (°C): 0.007 @ – 40 °C, 0.005 @ + 50 °C, 0.008 @ +100 °C
• Temperature uniformity (°C): ± 0.02 @ + 50 °C
• Calibrate sensors of any dimension
• Fluid ensures perfect heat transfer
• Unique vertical flow design
• Take it anywhere
