TEMPERATURE MEASUREMENT

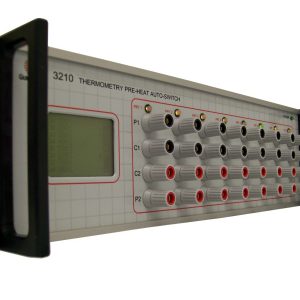

3210T Thermometry Auto-Switch with Pre-Heat
0
PRODUCT FEATURES
- Connect up to 8 PRT’s/SPRT’s at One Time
- Supports Non-SPRT Probes or Devices With Currents Other Than 1 mA
- Programmable Pre-Heat Currents From 20 µA to 150 mA
- Pre-Heat Available and Set-able on an Individual Channel Basis
- Ideal for Use with Fixed Points and Comparison Furnaces
- 5 Way Front Panel Connectors Allow Easy For Banana Connectors and Spade Lugs
- Multiple Interfaces Can be Integrated
- Front Panel Operator Connection with Touch Screen Control

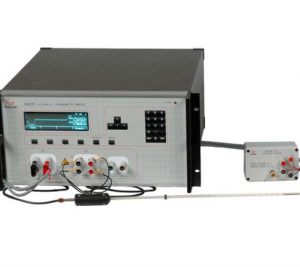

6622T TEMPERATURE BRIDGE
0
PRODUCT FEATURES
- Accuracy to 0.025 mK (i.e. best uncertainty at 0.1 ppm)
- Extended Performance (XP) Model Provides Best Accuracy at 0.013 mK (i.e. best uncertainty at 0.05 ppm)
- Wide Range From 0.1 Ω ~ 100 kΩ, Supporting a Wide Variety of SPRT’s, PRT’s, and RTD’s
- Resolution: ± 0.1 ppb of Full Scale and Linearity: ± 0.01 ppm of Full Scale
- Built in Temperature Conversion for ITS-90 and IPTS-68
- Graphical and Statistical Display
- Wide Range of Ratios: 0.1:1 ~ 100:1
- Fully Programmable IEEE 488.2 with BridgeWorks™ Data Acquisition Software

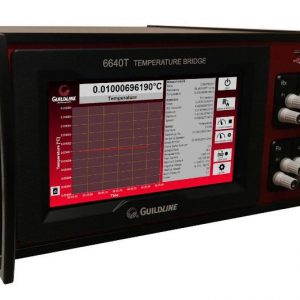

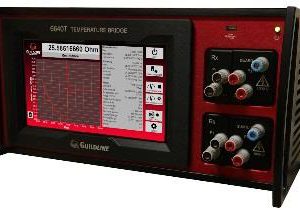

6640T SERIES OF AUTOMATIC MEASUREMENT SYSTEM TEMPERATURE BRIDGES
0
PRODUCT FEATURES
- Best Accuracy: ± 0.015 ppm with 1 mA of Current
- Linearity: < ± 0.01 ppm of Full Scale
- Patented Toroid Design Specifically for Temperature Measurement Applications
- Measurement Rates Fast as 2 Seconds
- First Measurement in < 10 Seconds
- Built-in Windows 10 Computer and Touch Screen Display Providing Complete Measurement Results and Graphs
- System Control via USB, Network, or IEEE
- Widest Available Resistance Range up to 100 kΩ
- Full Pre-Heat and Individual Channel and Current Control with Model 3210
- Modular Design, Expandable Capabilities
- Full 10.5 Digits (0.1 ppb) Display Resolution
- Change All Key Parameters “On-the-Fly” While the Measurement is Running
- Wide Range of Ratios: 0.1:1 ~ 13.4:1
- Available USB Ports for Data Collection and/or Ancillary Items Such as Hard Drives, Mouse, Keyboard, etc
- BridgeWorksTM Data Acquisition Software
- Unique Calibration Support Strategy
- Complete Measurement Systems Available!

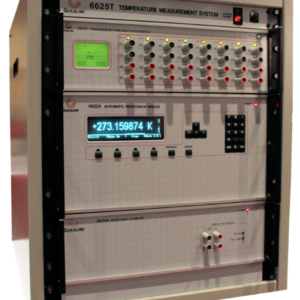

MODEL 6625T SERIES TEMPERATURE MEASUREMENT SYSTEMS
0
- Complete Turn-Key System – Fully integrated,
wired, tested and ready to use! - 0.025 mK and 0.013 mK Uncertainties
available! - Wide Range of Ratios: 0.1:1 ~ 100:1 and up to
2,000,000:1 and More with Range Extension - Resolution: ± 0.1 ppb of Full Scale!
- Unique Measurement Results and Trending
Display - Includes Manual and Automated Modes of
Operation - Modular Design, Expandable Capabilities,
Investment Protection - BridgeWorksTM Data Acquisition Software
- Unique Calibration Support Strategy
- Change Key parameters “on-the-fly” while
Measurements are running in manual and
automated modes

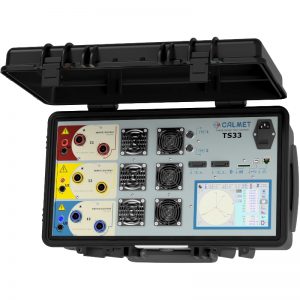

TS33 – Three-phase Fully Automatic Test System with Reference Standard and Integrated Current and Voltage Source
0
PRODUCT FEATURES
Our competence can give you only the best:
- High performance: 3x600V, 3x120A, class up to 0.05% (meter) or 0.1% (source)
- High accuracy: three-phase working standard class 0.05%
- Huge output power and low weight: only 20kg (44lbs) in portable case
- Quick measurements, analysis and reports of power quality parameters
- Advanced functions but easy to use
- Automatic tests of energy meters and PT (VT), CT transformers
- Manual operations and fully automatic procedures for calibrating and testing
- Professional service and support (it doesn’t matter if you have a complex or trivial issue)
- Low price in comparison to the best performance
