7223CT-2S SERIES PRECISION AC CURRENT TRANSFORMER SERIES
0
- High Precision AC Current Measurements!
- Fixed Permanent Accuracy!
- Measurement Accuracy <5 ppm at Power Frequencies for Both Ratio and Phase Angle!
- Stability Measurement < 5 ppm!
- High Voltage Isolated Measurement Capabililty When Used with a Suitable Insulating Bushing!
- High Accuracy with Burdens up to 1Ω!
- 7223CT-2S Provides 1000:1 Transformation Ratio!
- 7223CT-2S/HV Provides 2000:1 Transformation Ratio!

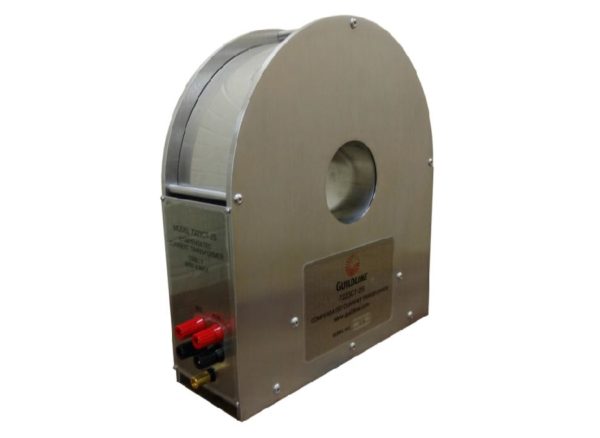

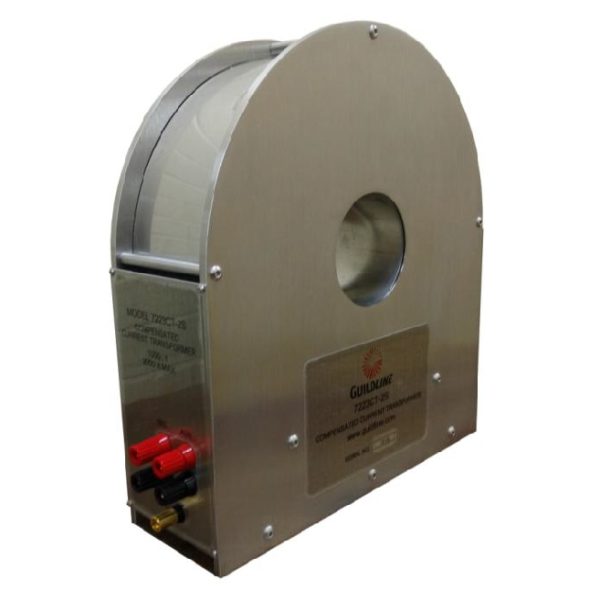

Guildline’s 7223CT-2S Series of Precision AC Current Transformers provides very accurate AC current measurements at high current and for high voltages. The 7223CT-2S 2000 A model on the left is designed with a 76.2 mm (i.e. 3 inch) diameter open window to allow the insertion of a high voltage insulating bushing as well as to pass a single cable, set of cables, or buss bar that carry the AC current to be measured. The 7223CT-2S AC Current Transformer produces an output current that varies directly with the input current with a ratio of 1000:1. The 7223CT-2S-HV High Voltage model has a ratio of 2000:1.
Both the 7223CT-2S and 7223CT-2S-HV make measurements of current up to a maximum of 2000 A. Other ratios are available with reduced accuracy on special order. The full scale output is provided through five way binding post connectors on the front panel.
THE 7223CT-2S IS PART OF THE 7223CT SERIES WHICH ARE COMMERCIALLY AVAILABLE HIGH PRECISION, LOW AND HIGH VOLTAGE, AC CURRENT INSTRUMENTS CAPABLE OF < 5 PART-PER-MILLION (PPM) MEASUREMENT ACCURACY!
All 7223CT-2S Precision AC Current Transformers are packaged in a rugged metal enclosure.
