GL 1050 SERIES PRECISION RESISTANCE TRANSFER STANDARDS
0
- Very High Quality Laboratory Standard with Same Operation, Specifications and Layout of the Original ESI Design!
- High Transfer Accuracy Better Than 2 ppm!
- 2 Models with Decade Values from 1 MΩ /step and 10 MΩ/step!
- Resistance Transfers from 100 kΩ to 110MΩ
- Each Device Configurable to 10R, 1R, and R/10!
- Leakage Resistance >1013Ω from Terminal to Case!
- Can also be used as a Precision Voltage Divider!
- Proven Guildline Quality with over 60 Years Design Experience!

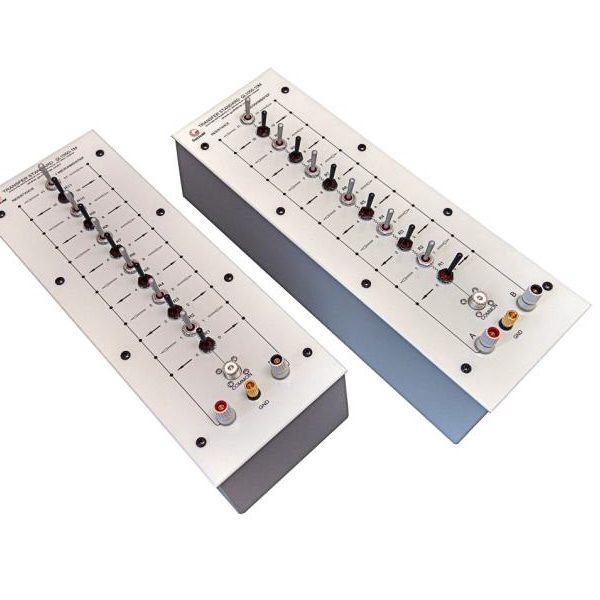

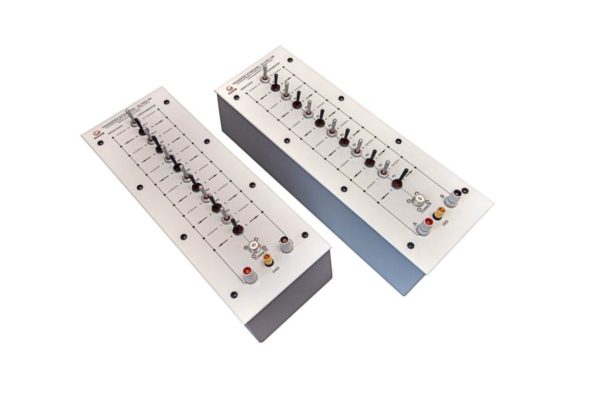

GUILDLINE INSTRUMENTS GL 1050 SERIES of Resistance Transfer Standards are designed as ver high stability calibration laboratory transfer standards for customers looking to replace the old ESI SR1050 Series.
The classic look and feel of the original ESI SR1050 Series has been maintained with the size and weight being very similar. The switches, binding posts and elements are of the highest quality found in a laboratory instrument. The resistance elements used in the Model GL 1050 Series go through the same rigorous testing and acceptance as do the elements found in our primary laboratory resistance standards.
1MΩ AND 10 MΩ GL 1050 TRANSFER MODELS ARE AVAILABLE PROVIDING THE HIGHEST AVAILABLE UNCERTAINTY WITH GUILDLINE’S 60 YEARS OF DESIGN EXPERIENCE AND QUALITY IN EVERY UNIT SOLD!
Like the original ESI Design, 3 Position, high isolation Lever Switching is used and no shorting or paralleling bars are required. We even alternate switch colors to allow a quick and easy visual that all values are in the correct toggle position. A 12th zero switch is provided.
Available models are 1MΩ and 10 MΩ Decade Resistance Standards which have 11 equal valued, highly precise resistors contained within them. Each Model GL 1050 Series has 11 equal value resistors in increments of 1 MΩ per step or 10 MΩ per step, depending on the model.
The Guildline GL 1050 Series – Keeping the original ESI performance and operation, coupled with the sam exceptional Guildline quality you have come to know since 1957!
