Precision Transfer Standard

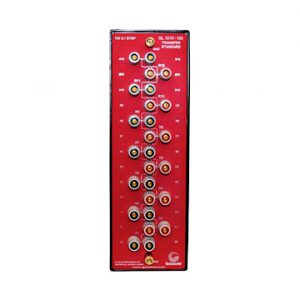

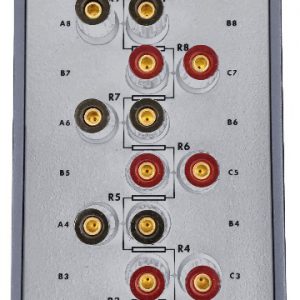

GL 1010 SERIES OF RESISTANCE TRANSFER STANDARDS
0
PRODUCT FEATURES
- Transfer Accuracy better than 1 ppm!
- Exact ESI SR1010 Series Replacement!
- Six models Available with decade values from 1Ω/step to 100 kΩ/step!
- Establish decade resistances from 0.1 Ω to 1 MΩ!
- Each device configurable to 10R, 1R, and R/10!
- Leakage Resistance >1012 Ω from terminal to case!
- ISO 17025 Accredited Calibration!
- Only Manufacturer that can provide fully automated calibration solutions to support the SR/GL 1010 Series!

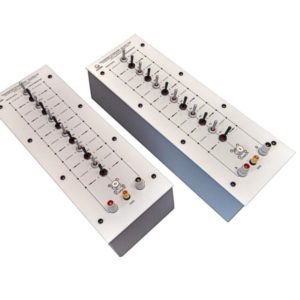

GL 1050 SERIES PRECISION RESISTANCE TRANSFER STANDARDS
0
- Very High Quality Laboratory Standard with Same Operation, Specifications and Layout of the Original ESI Design!
- High Transfer Accuracy Better Than 2 ppm!
- 2 Models with Decade Values from 1 MΩ /step and 10 MΩ/step!
- Resistance Transfers from 100 kΩ to 110MΩ
- Each Device Configurable to 10R, 1R, and R/10!
- Leakage Resistance >1013Ω from Terminal to Case!
- Can also be used as a Precision Voltage Divider!
- Proven Guildline Quality with over 60 Years Design Experience!
