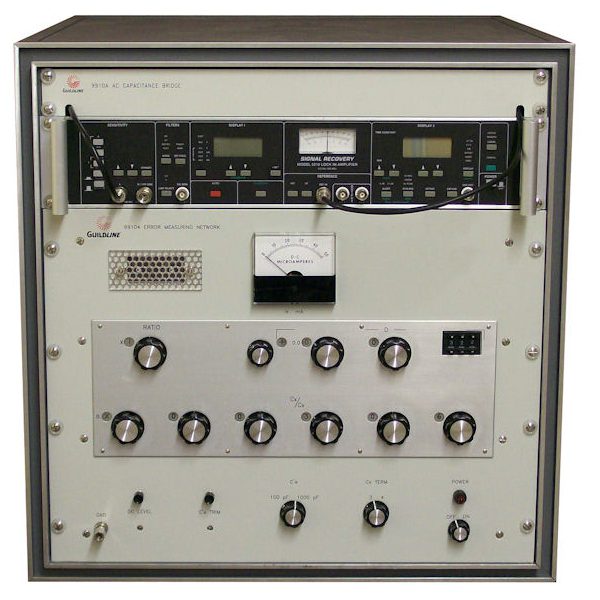

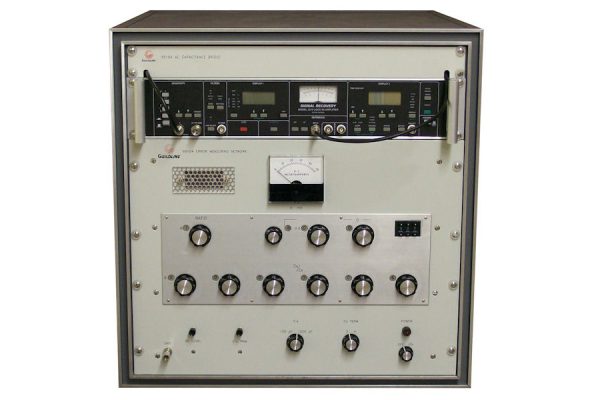

9910A AC HIGH VOLTAGE CAPACITANCE AND INDUCTANCE BRIDGE
0
PRODUCT FEATURES
- Better than 15 ppm accuracy, permanent
- Direct reading, six-digit measurements of capacitance from 100 pf to 1000 μF
- Dissipation factor up to 11.1 percent
- Working Voltage to 50 kV with 9911
- Safe to operate, even into Megavolt region
- Bridge components remain at ground potential
- Ideal for measuring low-loss, high voltage, power cables, insulators, transformers, P.F. correction capacitors and reactors
Guildline Instruments 9910A High Voltage Capacitance Bridge is a measurement standard employing the AC Current Comparator principle. The Current Comparator principle is applied to the measurement of ratio and dissipation factors of high voltage capacitors in a similar manner to the classical Schering Bridge but with greatly improved accuracy and resolution.
.
