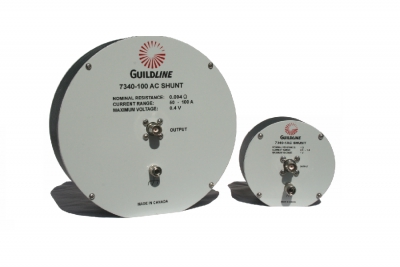

7340 SERIES AC/DC PRECISION CURRENT SHUNTS
0
-
PRODUCT FEATURES
- High Current Values to 100 Amps
- AC/DC Difference Essentially Zero at Power Frequencies, and < 10 ppm up to 10 kHz
- Phase Displacement typically 5 to 10X Better then nearest competitor from 10kHz to 100 kHz
- Widest Available Bandwidth DC to100 kHz
- Excellent 1-Year Stabilities
- Low Temperature Coefficients 2.5 ppm/°C
- Provides a 4-Wire, True Non-Inductive Patented Design
- 7340 Series Provides 10 Current Values from 10 mA to 100 A with Output Voltages from 0.2 to 1.0 V
- Ruggedized EMI Shielded Enclosure
- Designed for Ease of Use and Complete Operational Safety
The 7340 Series features High Stability, Voltage Rated AC/DC Current Calibration Standards. Providing precision AC current measurements to 100 A and a wide 100 kHz frequency bandwidth.
.
