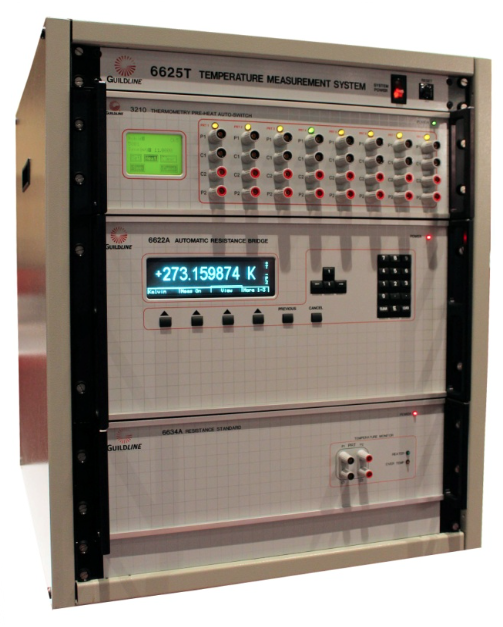

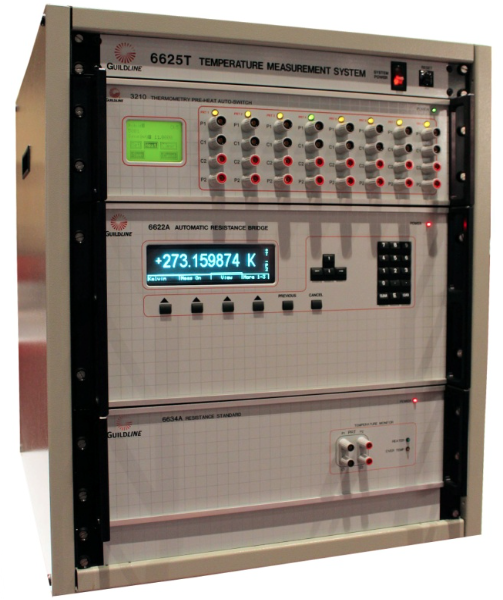

Guildline Instruments 6625T Temperature Measurement System provides demanding users around the world with the best in temperature measurements and value. Incorporating unique features, this system is a true “turn-key” Temperature Measurement System. The 6625T System provides leading measurement specifications with uncertainties as low as 0.013 mK and the widest range of options available from any manufacturer.

The system is highly configurable to meet wide ranging workload requirements. The 6625T is capable of resistance measurements from 0.1 µΩ all the way to 100 kΩ (and up to 1 GΩ if Resistance Measurement Option is internally installed). Guildline’s 6625T Temperature Measurement System is the only commercially available system that covers the calibration range of thermometry fixed points as well as cryogenic and high temperature applications!

The 6622T Temperature Bridge has the range of operation range to accommodate Platinum Resistance Thermometers (PRT’s, SPRT’s, HTPRT’s) as well as Thermistors and other RTD’s from 0.001Ω to 100kΩ! For example, the 6622T extends beyond the ITS-90 Temperature Range, supporting high value RTD’s such as Ruthenium Oxide which will reach a resistance of 75 kΩ in Cryogenic applications where they are typically used.

Based on the World’s Leading 6622T Thermometry Bridge, the 6625T Provides the Most Advanced Temperature Measurement Standard Available Today While Maximizing Flexibility and Expansion Paths For Future Requirements!

Guildline’s unique design and modularity allows customers to purchase what they need today for research and to support calibration of their current work-load; and be assured of an upgrade path to support their future requirements. The system is typically delivered ready for use in a single rack.

In fact, a system with a built in 5 to 10 Element Resistance Standard, Temperature Bridge and Guildline’s unique Thermometry Adaptor is only 12U in Height (approximately 21” or 53 cm).
